TJ Frame Swap

+7
Tobit
CrawlingForward
2003x
Mark
angri
JaFra
kvesi122
11 posters

Page 3 of 4 Previous  1, 2, 3, 4  Next

Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/18/2013, 5:40 pm

Would anybody be available on Wed to help lift the tub off? I was try to do it with an engine hoist today but it wasn't lifting the tub. I couldn't get the tub to lift straight up. All 8 body mount bolts have been removed along with all the levers inside the tub and the steering shaft.

Please let me know! I could really use the help.

kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/18/2013, 6:25 pm


There are 11 body mount bolts that hold the body on a TJ frame!!
5 on each side and 1 at grille

This is the amount and location of body mounts per side!

3 mounts under seating area each side.
1 at upper rear shock cross member each side.
1 at the rear corner each side .
1 only in radiator support

Total of 11,
don't forget to disconnect fuel tank filler tube from body and the rear end vent hose inside left rear quarter panel.
disconnect clutch slave cylinder at bell housing if standard trans.
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/18/2013, 7:07 pm

What the hell how do you get at the ones near the rear crossmember? There's no room to get a breaker bar in by the gas tank.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/18/2013, 7:43 pm

You can do it. I did mine but I don't remember .
Just thought that I would save you some aggrivation, it would have never came off with out removing the other two bolts.
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/18/2013, 7:50 pm

Woooohooooo!!! Thank you so much for that haha. The tub lifts right off. I'll try to find someone tomorrow to helps balance the tub while I push the frame out. Thank you so much man I really appreciate it.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/18/2013, 8:05 pm

Good luck with it, I hope things go well for you.
Mark,
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/18/2013, 10:22 pm

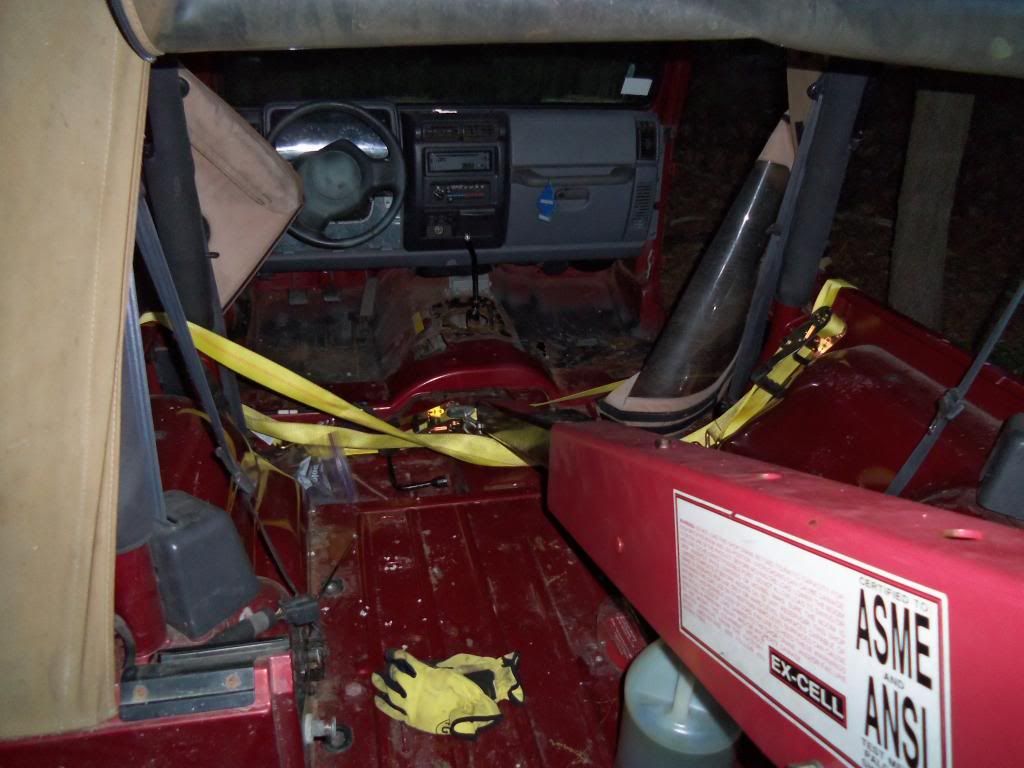

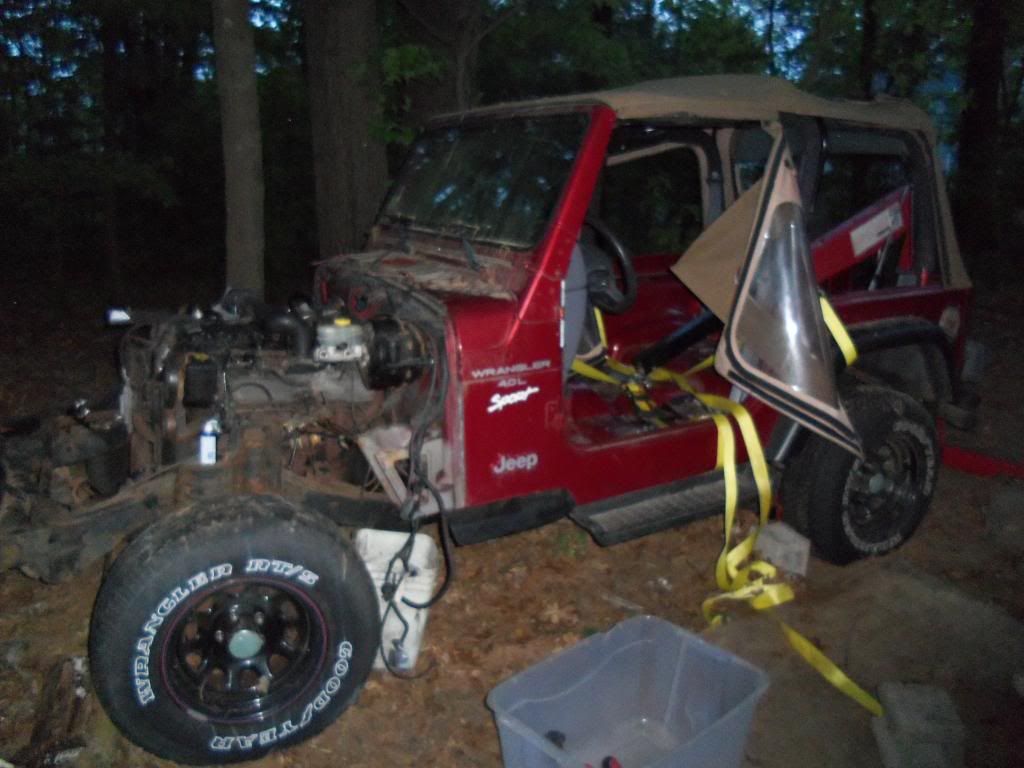

Here's the tub all hooked up to be pulled tomorrow. I did a pilot lift to be sure it would come off.

TJ Frame Swap - Page 3 100_0279_zpsb68e7fc8

TJ Frame Swap - Page 3 100_0280_zps1760b58d

TJ Frame Swap - Page 3 100_0281_zps6281b59e
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/27/2013, 9:45 pm

Big news!!! The tub is off. The control arms are off the rear axle and I'm disconnecting the driveshaft tomorrow.

TJ Frame Swap - Page 3 100_0282_zps55c0d691

TJ Frame Swap - Page 3 100_0283_zps00c1d105

TJ Frame Swap - Page 3 100_0286_zpsd986ef7d

TJ Frame Swap - Page 3 100_0287_zps2606649a

Crusty frame near control arm brackets. Still need a picture of the rips on the bottom.

TJ Frame Swap - Page 3 100_0288_zps56eb8534
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  CrawlingForward 5/28/2013, 11:52 am

Nice! The worse of it is over.

Now it's just reversing the process, right?

_________________
95 YJ, 2" BDS w/ 1" shackle lift, 235/85/16 BFG ATs on Cherokee Icon wheels, SYE w/ Tom Woods Driveshaft, 4.88 Ford 8.8, locked/locked
2010 JK Unlimited, Islander Edition

My JeepForum build
CrawlingForward
CrawlingForward
Moab Dessert

Posts : 822
Join date : 2011-12-09
Age : 36
Location : Flushing, MI

http://www.geoffreymarsh.com

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/28/2013, 4:05 pm

For the most part. Lots of cleanup and painting to do along the way.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/28/2013, 4:24 pm

Looks like you are getting somewhere, keep up the good work ! cheers
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/28/2013, 10:56 pm

Picked up a set of motor mounts on jeepforum for $80 shipped.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/29/2013, 6:46 am

What brand motor mounts, factory style or performance?
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/29/2013, 10:33 am

Brown Dog. They aren't the 1" ones. Just the stock height. Couldn't resist for the price.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/29/2013, 9:00 pm

Rear axle is finally out! Took some time with a torch to heat the lower shock bolts.

The track bar bolt was the biggest PITA so far. Haven't had to cut any bolts yet but this one broke the ice. My friend came over with an oscillating cutting tool and a sawzall to cut the bolt out. Took about an hr of cutting and another half hr of pushing the axle around to pull it out.

TJ Frame Swap - Page 3 100_0291_zpsebf1805d

And the obligatory frame rust picture. Get the eye bleach ready!

TJ Frame Swap - Page 3 100_0294_zps00b913e6

Back end is held up with stumps right now. Didn't want to leave any jack stands out in the rain tonight.

TJ Frame Swap - Page 3 100_0295_zps6fec58f0
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 5/29/2013, 9:48 pm

Thats a good price for the motor mounts.
Boy that frame doesn't look too great!
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 5/29/2013, 11:02 pm

I can't believe the PO was driving around with it like that. Granted he hadn't "tested" the frame with a hammer either.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 6/12/2013, 7:58 pm

Sorry for the late update. I began disassembling the rear axle today for cleaning and painting. The jeep was put on hold for a week because I started a new internship. I didn't like the work that I was doing and the plans that they had for the rest of the summer so I ended up leaving. Had to commute 1.5 hrs each way so it wasn't the ideal situation. Needless to say I found another job 10 mins away that pays 15/hr for IT work so I'm happy Smile

I'll post a few pics after the rain tomorrow and Friday. If any of you guys want to help out with the engine and tranny removal next week let me know. I'm trying to figure out where to put it so that I can strip the motor and clean it. Also replacing the clutch with a Luk clutch.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 6/14/2013, 10:21 pm

As promised:

The original idea was to keep today simple so that I can be relaxed for my civil service exam tomorrow morning. That never happens so while I was removing the rear axle shafts today so that I could remove the backing plates one of the shaft c clips fell into the housing. The little slot under the pinion gear is just and I mean JUST big enough for the clip to slide in there. Shot in there like a rocket. Felt like I was playing a slot machine. So I continued on with my work and just decided to get it out later in the day.

After a I removed the sway bar and the backing plates I decided to remove the carrier assembly to reduce weight and provide more room to look around in the housing.

TJ Frame Swap - Page 3 100_0296_zps7ced5e9a

If I replace the shims and bearings in their exact original positions do I need to dick around with backlash and all that?

Axle shafts out.

TJ Frame Swap - Page 3 100_0298_zps15f05609

Most of the necessary hardware removed.

TJ Frame Swap - Page 3 100_0299_zps80207834

And this bastard. Man oh man I'm definitely breaking out the angle grinder for this. Not even going to try and remove it. The retaining nut on the opposite side basically turned to powder when I touched it.

TJ Frame Swap - Page 3 100_0300_zps7dafbfbc
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Mark 6/15/2013, 6:04 am

Back lash will be fine, just install shims on the same same side they came from.
Make sure to replace the axle seals.
Mark
Mark
Rubicon Trail

Posts : 1300
Join date : 2011-12-10
Location : Haverhill, MA

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 6/15/2013, 9:01 am

Awesome! Thanks for the quick reply. I'll throw the carrier back in today and start wire wheeling the outside of the axle.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Ryan McKee 6/15/2013, 11:50 am

To reply to your JF PM... I've still got the skid somewhere. Not sure where it is currently but I can look next time I am in town.  When you asked I really had to think about where it was..... guess I've got too much shit lying around.

Standby for a location.

_________________
Ryan, NSJ Club President - 781.632.3864
Built '99 TJ on 35s - My JeepForum Build Thread


All liability at North Shore Jeeps events is your own. You are attending/driving/observing at your own risk. You are solely responsible for yourself, your passengers, and your vehicle.
Ryan McKee
Ryan McKee
Admin

Posts : 1242
Join date : 2011-12-09
Location : Reading, MA

http://www.fellswaymedia.com

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 6/15/2013, 2:50 pm

If it's not rusted through I need a replacement haha. Let me know how much you want for it when you find it.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  Ryan McKee 6/15/2013, 2:53 pm

It's solid.  It's taken a beating over the years, but there are no weak points.

And don't even kid... it's yours if you need it haha. I'd never dream of asking for money for it.

_________________
Ryan, NSJ Club President - 781.632.3864
Built '99 TJ on 35s - My JeepForum Build Thread


All liability at North Shore Jeeps events is your own. You are attending/driving/observing at your own risk. You are solely responsible for yourself, your passengers, and your vehicle.
Ryan McKee
Ryan McKee
Admin

Posts : 1242
Join date : 2011-12-09
Location : Reading, MA

http://www.fellswaymedia.com

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap

Post  kvesi122 6/16/2013, 10:37 am

I appreciate your generosity but I wouldn't accept it without paying you cash.
kvesi122
kvesi122
Mall Crawler

Posts : 76
Join date : 2011-12-12

Back to top Go down

TJ Frame Swap - Page 3 Empty Re: TJ Frame Swap
